SG16D

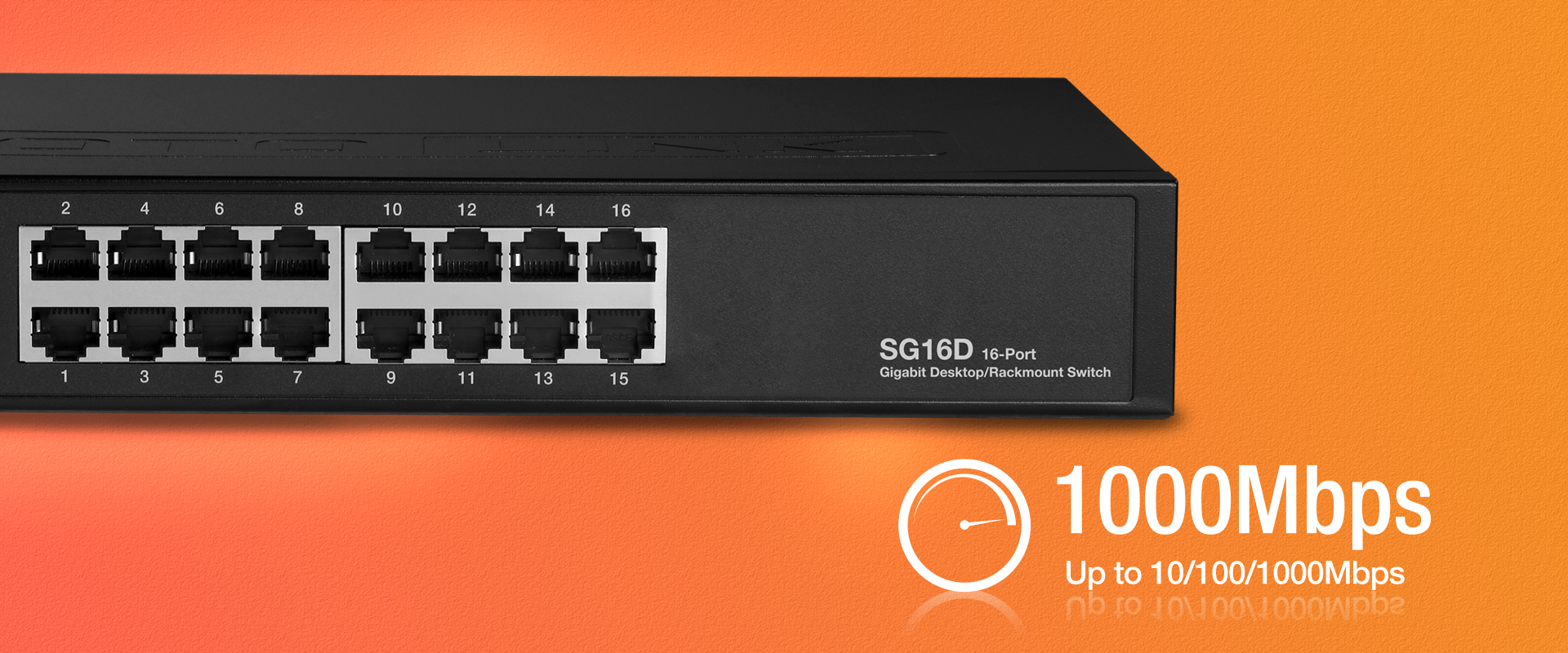

Gigabit Transfer Speed
SG16D complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x standards, providing 16 10/10/1000Mbps auto-negotiation RJ-45 ports to
expand network capacity and enable instant large files transferring.
Plug and Play
All the 16 RJ45 ports on SG16D allow plug and play for easy use, no configuration required.
Also they could detect connected device and auto change to suitable speed.

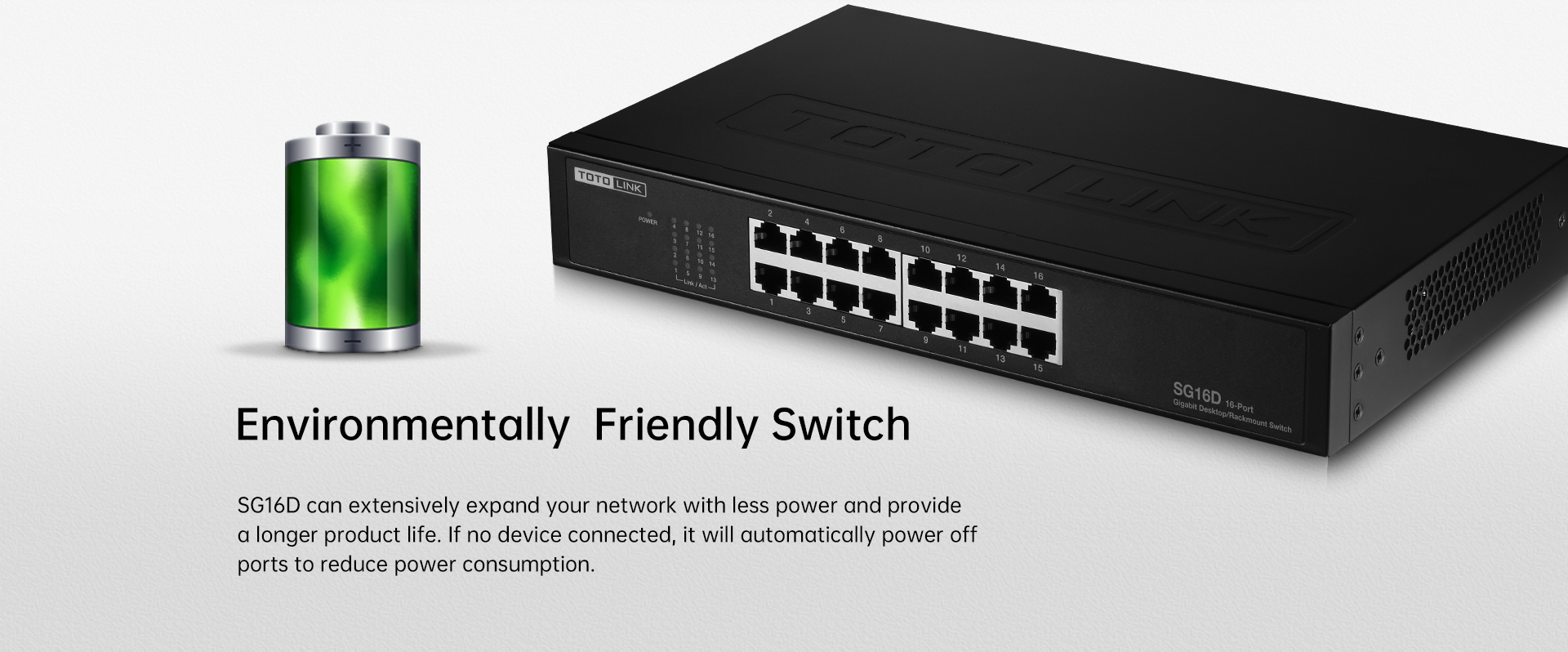

SG16D is a 16-port intelligent high-performance
gigabit switch installed on a desktop/rack type.
The SG16D is designed specifically for applications
such as diskless systems, network cloning, etc.
It passes 16 Gigabit RJ-45 ports in full duplex
The full bandwidth of 2000Mbps is provided in
working mode, which can transfer large files at high speed.
It is an ideal choice for workgroup or departmental networks.
In addition, it supports easy-to-view LED indicators for cable
installation and normal operation diagnosis.
16 10/100/1000BASE-T (AUTO-MDIX) Gigabit Ethernet
ports support wire-speed forwarding, automatic MDI/MDIX
and auto-negotiation, without worrying about the cable type,
just plug and play.
Make the SG16D a high-performance solution for your business network.
16 10/100/1000Mbps auto-negotiated RJ45 ports.
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
32Gbps Switching Capacity.
Auto-MDI/MDIX eliminates the need for crossover cables.
Store and forward Switching scheme.
Supports NWay auto-negotiation for all ports.
Supports Jumbo Frame (10KByte).
Supports IGMP Snooping.
